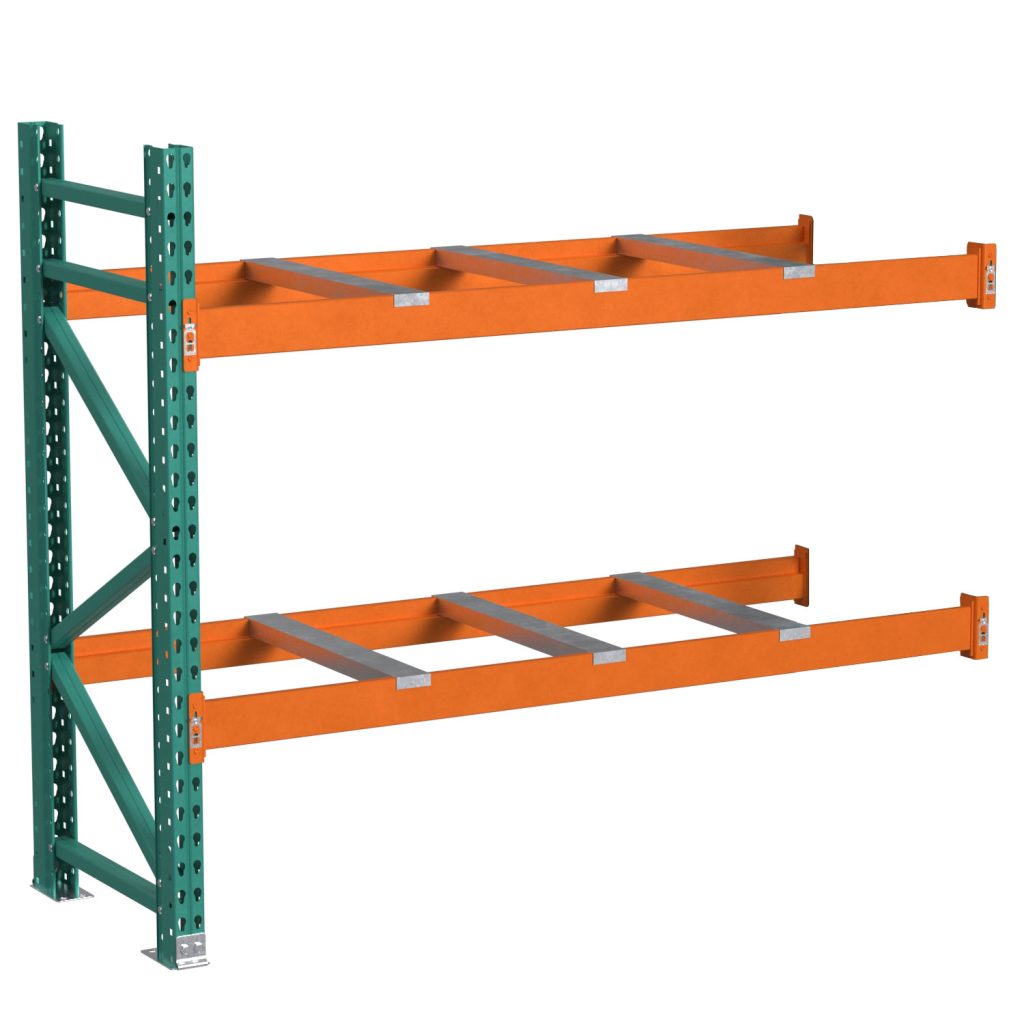

Pallet Racking with Front-to-Back Supports Add-On
- Includes upright, beams, and supports for a ready-to-use add-on section.
- Roll-form welded uprights with K-brace and cross channel reinforcement, meeting LRFD specifications.
- Interchangeable with other teardrop-style products for versatility.
- Adjustable beams feature a secure connection and customizable shelving height.
- Front-to-back supports prevent beam rotation and ensure safety.
- View More Details
$734.81 – $1,532.48 per Unit
Frequently bought together
-
-
-
Pallet Rack Row Spacer
$16.44 – $25.11 per UnitSKU: GVRSPC
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Pallet Rack Guard Impact Support
$102.15 – $211.90 per UnitSKU: SYIMSUP
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Pallet Racking with Front-to-Back Supports Starter
$993.29 – $1,898.03 per UnitSKU: Pallet FBS Starter
Select options This product has multiple variants. The options may be chosen on the product pageQuick View
- Product Details
- Product Specifications
- Reviews (0)
- Level Capacities
- Downloads
Description
Enhance your industrial storage efficiency with Lyon’s premium Pallet Rack add-on section with front-to-back supports. This comprehensive package provides the essential components for a robust and secure Storage Rack solution.
Each add-on section includes one upright, two beams per level, and the necessary number of front-to-back supports based on the beam width. This configuration ensures optimal stability and prevents beam rotation, even if there are heavy loads.
Uprights
The Uprights are roll-form welded and feature 100% MIG welding with K-brace and cross channel reinforcement, offering exceptional strength and durability. Designed to meet the latest Rack Manufacturers’ Institute LRFD specifications, these uprights adhere to the highest industry standards for safety and performance.
For added versatility, our pallet rack add-on sections are interchangeable with other major teardrop-style products on the market, allowing for seamless integration with existing systems. Finished in a durable Lake Green powder coat paint, these uprights provide a professional appearance while offering corrosion resistance.
Beams
The included Beams feature sturdy studs that engage seamlessly with the upright slots, ensuring a stable and secure connection. The beams are adjustable on 2″ vertical centers, so you can customize your shelving height to accommodate various pallet sizes. Our innovative integral safety lock automatically locks into place when properly seated, providing added security and preventing accidental disengagement.
Front-to-Back Supports
Front-to-Back Supports play a crucial role in minimizing beam rotation while reducing the risk of misplaced pallets falling through. This added feature enhances safety and prevents potential damage to stored goods.
To ensure optimal stability and safety, it is essential to install uprights on a level surface, plumb, and properly anchored. Lyon offers Concrete Wedge Anchors for secure installation.
For detailed information on beam capacities and load ratings, please refer to our beam capacities tab.
Invest in Lyon’s pallet rack add-on section with front-to-back supports and experience the difference in quality and performance that our products can bring to your industrial storage operations.
NOTE: This add-on unit must connect with a starter unit.
Please view the Pallet Racking with Front-to-Back Supports Starter if you need a starter unit. Together with a starter, pallet rack add-ons let you create a long run of industrial racking systems.
View more Pre-Designed Pallet Rack Units from Lyon
Starter Or Add On | Add-On |
---|
Only logged in customers who have purchased this product may leave a review.
SKU | Width | Depth | Height | Levels | Capacity Per Level |
---|---|---|---|---|---|
97AFB096042096 | 96″ Wide | 42″ Deep | 96″ High | 2 | 5,200 lbs Per Level |
97AFB096048096 | 96″ Wide | 48″ Deep | 96″ High | 2 | 5,200 lbs Per Level |
97AFB096042144 | 96″ Wide | 42″ Deep | 144″ High | 3 | 5,200 lbs Per Level |
97AFB096048144 | 96″ Wide | 48″ Deep | 144″ High | 3 | 5,200 lbs Per Level |
97AFB108042096 | 108″ Wide | 42″ Deep | 96″ High | 2 | 6,320 lbs Per Level |
97AFB108048096 | 108″ Wide | 48″ Deep | 96″ High | 2 | 6,320 lbs Per Level |
97AFB108042144 | 108″ Wide | 42″ Deep | 144″ High | 3 | 6,320 lbs Per Level |
97AFB108048144 | 108″ Wide | 48″ Deep | 144″ High | 3 | 6,320 lbs Per Level |
97AFB120042096 | 120″ Wide | 42″ Deep | 96″ High | 2 | 6,140 lbs Per Level |
97AFB120048096 | 120″ Wide | 48″ Deep | 96″ High | 2 | 6,140 lbs Per Level |
97AFB120042144 | 120″ Wide | 42″ Deep | 144″ High | 3 | 6,140 lbs Per Level |
97AFB120048144 | 120″ Wide | 48″ Deep | 144″ High | 3 | 6,140 lbs Per Level |
97AFB144042096 | 144″ Wide | 42″ Deep | 96″ High | 2 | 6,790 lbs Per Level |
97AFB144048096 | 144″ Wide | 48″ Deep | 96″ High | 2 | 6,790 lbs Per Level |
97AFB144042144 | 144″ Wide | 42″ Deep | 144″ High | 3 | 6,790 lbs Per Level |
97AFB144048144 | 144″ Wide | 48″ Deep | 144″ High | 3 | 6,790 lbs Per Level |
