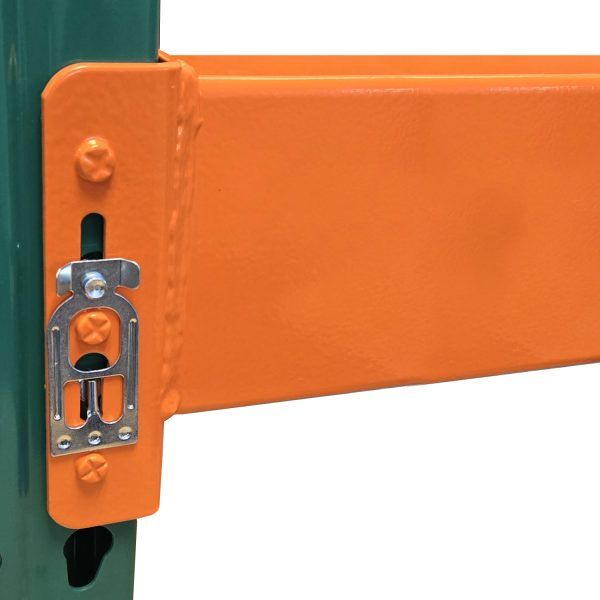

Lyon pallet rack beam safety orange
Lyon pallet rack beam inside safety orange
Lyon pallet rack beam safety orange
Lyon pallet rack beam inside safety orange

Pallet Rack Beam

  • Optimize industrial storage with Lyon’s high-performance pallet rack beams.
  • Sturdy studs for secure connection and adjustable shelving for various pallet sizes.
  • Integral safety lock prevents accidental disengagement.
  • Requires front-to-back support for beams over 120″ in length without decking.
  • Safety orange powder coat for visibility.
  • View More Details
0 out of 5
( Be the first to review. )

Price range: $57.74 through $130.77 per Unit

SKU: PR Beam
Ships In 24-48 Hours
Ships In 24-48 Hours
Ships In 24-48 Hours
Ships In 24-48 Hours

Frequently bought together

Description

Optimize your industrial storage with Lyon’s high-performance Pallet Rack beams. Engineered for efficiency and durability, Lyon designed these beams to provide a secure and reliable foundation for your pallet storage needs.

Each end of the beam features sturdy studs that engage seamlessly with the upright slots. This helps to ensure a stable and secure connection. The beams are adjustable on 2″ vertical centers, allowing you to customize your shelving height to accommodate various pallet sizes. Our safety pin slides into place when the beam is properly seated, providing added security and preventing accidental disengagement.

For beams exceeding 120″ in length, we recommend using at least one Front-to-Back Support when Wire Decking or Solid Decking is not in place. This additional support enhances stability and prevents beam deflection under heavy loads.

Our pallet rack beams comes in a vibrant Safety Orange powder coat paint finish. It provides a high-visibility warning and enhancing workplace safety. Lyon recommends maintaining a clearance of 4″ between palletized loads and between loads and Uprights to ensure safe and efficient storage.

The available widths of 96″, 108″, 120″, and 144″ offer versatility to fit various pallet sizes and Storage Rack configurations. To determine the appropriate beam capacity, please refer to our beam capacities in the additional information tab.

Experience the difference in efficiency and reliability that our high-quality products can bring to your industrial storage operations.

View more Pallet Rack Components from Lyon

Additional information

Weight N/A
Dimensions N/A
Color

Safety Orange
Material

Painted Steel
Package Size

1 Unit
Width

96" Wide, 108" Wide, 120" Wide, 144" Wide

Beam Specifications

SKU Width Beam-Face Height Capacity Per Level
SOK96M 96″ 4.5″ 5,459 lbs
SOK108M 108″ 5.5″ 7,186 lbs
SOK120M 120″ 5.5″ 6,985 lbs
SOK144M 144″ 6″ 6,375 lbs
