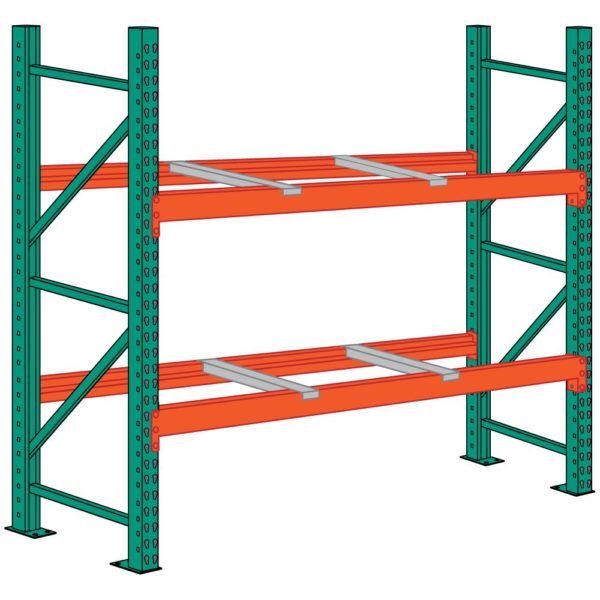

Pallet Racking Starter with Front-to-Back Supports

  • Includes upright, beams, and supports for a ready-to-use starter section
  • Roll-form welded uprights with K-brace and cross channel reinforcement, meeting LRFD specifications
  • Interchangeable with other teardrop-style products for versatility
  • Adjustable beams feature a secure connection and customizable shelving height
  • Front-to-back supports prevent beam rotation and ensure safety
  • Pallet racking comes with a 1 Year Warranty
  • View More Details
0 out of 5
( Be the first to review. )

Price range: $1,034.55 through $1,838.25 per Unit

SKU: Pallet FBS Starter
Ships In 3-4 Days
Ships In 3-4 Days
Ships In 3-4 Days
Ships In 3-4 Days
Ships In 3-4 Days
Ships In 3-4 Days

Frequently bought together

Description

Enhance your industrial storage efficiency with Lyon’s premium Pallet Rack starter section with front-to-back supports. This comprehensive package provides the essential components for a robust and secure Storage Rack solution.

Each starter section includes two uprights, two beams per level, and the necessary number of front-to-back supports based on the beam width. This configuration ensures optimal stability and prevents beam rotation, even if there are heavy loads.

Uprights

The Uprights are roll-form welded and feature 100% MIG welding with K-brace and cross channel reinforcement, offering exceptional strength and durability. Designed to meet the latest Rack Manufacturers’ Institute LRFD specifications, these uprights adhere to the highest industry standards for safety and performance.

For added versatility, our pallet rack starter sections are interchangeable with other major teardrop-style products on the market, allowing for seamless integration with existing systems. Finished in a durable Lake Green powder coat paint, these uprights provide a professional appearance while offering corrosion resistance.

Beams

The included Beams feature sturdy studs that engage seamlessly with the upright slots, ensuring a stable and secure connection. The beams are adjustable on 2″ vertical centers, so you can customize your shelving height to accommodate various pallet sizes. Our innovative integral safety lock automatically locks into place when properly seated, providing added security and preventing accidental disengagement.

Front-to-Back Supports

Front-to-Back Supports play a crucial role in minimizing beam rotation while reducing the risk of misplaced pallets falling through. This added feature enhances safety and prevents potential damage to stored goods.

To ensure optimal stability and safety, it is essential to install uprights on a level surface, plumb, and properly anchored. Lyon offers Concrete Wedge Anchors for secure installation.

For detailed information on beam capacities and load ratings, please refer to our beam capacities tab.

Invest in Lyon’s pallet rack starter section with front-to-back supports and experience the difference in quality and performance that our products can bring to your industrial storage operations.

Please view the Pallet Racking with Front-to-Back Supports Add-On if you need an add-on unit. Together with a starter, pallet rack add-ons let you create a long run of industrial racking systems.

View more Pre-Designed Pallet Rack Units from Lyon

Additional information

Weight N/A
Dimensions N/A
Width

, , ,

Depth

,

Height

,

Decking

Section Type

Color

,

Material

Package Size

Level Capacities

SKU Width Depth Height Levels Capacity Per Level
97SFB096042096 96″ Wide 42″ Deep 96″ High 2 5,200 lbs Per Level
97SFB096048096 96″ Wide 48″ Deep 96″ High 2 5,200 lbs Per Level
97SFB096042144 96″ Wide 42″ Deep 144″ High 3 5,200 lbs Per Level
97SFB096048144 96″ Wide 48″ Deep 144″ High 3 5,200 lbs Per Level
97SFB108042096 108″ Wide 42″ Deep 96″ High 2 6,320 lbs Per Level
97SFB108048096 108″ Wide 48″ Deep 96″ High 2 6,320 lbs Per Level
97SFB108042144 108″ Wide 42″ Deep 144″ High 3 6,320 lbs Per Level
97SFB108048144 108″ Wide 48″ Deep 144″ High 3 6,320 lbs Per Level
97SFB120042096 120″ Wide 42″ Deep 96″ High 2 6,140 lbs Per Level
97SFB120048096 120″ Wide 48″ Deep 96″ High 2 6,140 lbs Per Level
97SFB120042144 120″ Wide 42″ Deep 144″ High 3 6,140 lbs Per Level
97SFB120048144 120″ Wide 48″ Deep 144″ High 3 6,140 lbs Per Level
97SFB144042096 144″ Wide 42″ Deep 96″ High 2 6,790 lbs Per Level
97SFB144048096 144″ Wide 48″ Deep 96″ High 2 6,790 lbs Per Level
97SFB144042144 144″ Wide 42″ Deep 144″ High 3 6,790 lbs Per Level
97SFB144048144 144″ Wide 48″ Deep 144″ High 3 6,790 lbs Per Level
