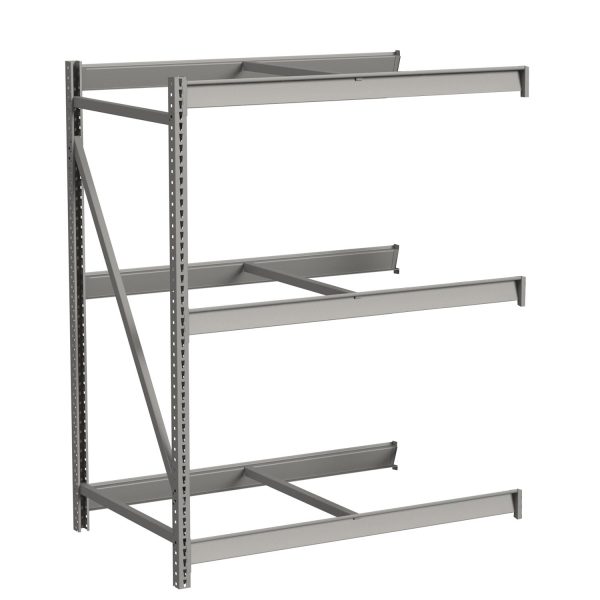

Bulk Storage Rack with Front-to-Back Supports Add-On

  • Ideal for bulky items, retail displays, medical supplies, and more.
  • Welded 14-gauge steel uprights and heavy-duty beams with Z-beam design.
  • Easy to adjust beam height for optimal storage.
  • Front-to-back supports help prevent beam rotation and ensure stability.
  • Unassembled for DIY setup, easy to install with or without additional sections.
  • View More Details

$386.12$697.05 per Unit

SKU: BSR FBS Add-On
Clear

Frequently bought together

Description

Lyon’s bulk storage rack add-on with front-to-back supports is ideal for the hand-loading of intermediate weight bulky items. You can use this heavy-duty rack shelf in any number of storage applications. In addition to storing merchandise in shipping and receiving departments, stores can use these industrial metal racks in retail locations for display as well as for back stock. Hospitals can also use this heavy-duty steel storage rack to hold medical supplies and much more. We offer these steel Storage Racks with a durable powder coat finish available in Dove Gray. The powder coat paint finish will help protect your bulk rack shelving from everyday use.

Welded Upright

Our Bulk Storage Rack add-on includes one fully welded upright made of 14-gauge steel. The upright comes fully assembled and ready to install. These storage rack Uprights feature tubular bracing that is MIG welded to the post for added stability. The slots of the uprights provide a quick and easy vertical adjustment of beams to create optimal storage solutions. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post. When combined with a starter unit, a pair of bulk storage rack uprights can hold up to 10,000 lbs.

Heavy-Duty Beams

Lyon makes the heavy-duty beams of 14-gauge steel. Our unique “Z” beam design increases the strength and load capacity of the the steel Beams while also resisting tipping and eliminating wasted space. The MIG welded beam clips give added strength. Each end of the beam has three studs to engage the heavy-duty metal rack upright slots. Easily adjust the beams on 1-1/2-inch vertical centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change. A fold in lock tab easily engages with the post to prevent accidental displacement. Create even more storage options by adding more Levels with Front-to-Back Supports to your adjustable metal storage racks.

Front-to-Back Supports

This bulk storage rack add-on includes the proper amount of Front-to-Back Supports with each level. The supports install easily onto the heavy-duty metal rack without tools. The supports help minimize beam rotation when supporting heavy loads. This maintains both the rigidity and stability of your industrial rack shelving. These supports can also be used as supports to hold your own plywood decking.

Assembly and Installation

The bulk storage rack add-on ships unassembled. These heavy-duty metal storage rack sections assemble easily without tools.

NOTE: This add-on unit must connect with a starter unit.

Please view the Bulk Storage Rack Starter if you need a starter unit. Together with a starter, bulk storage rack add-ons let you build rows of industrial steel storage racks.

Lyon strongly recommends that all storage racks be properly anchored. Make sure to install your heavy-duty metal storage racks plumb and level before anchoring them to the floor and/or wall. Use the Bulk Storage Rack Anchoring Foot and Wedge Anchors to anchor your uprights to the floor.

View more Pre-Designed Bulk Storage Rack Units from Lyon

Starter Or Add On Add-On

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

SKU Width Depth Height Levels Capacity Per Level
DD67211 60″ Wide 24″ Deep 72″ High 3 2,600 lbs Per Level
DD67221 60″ Wide 24″ Deep 84″ High 3 2,600 lbs Per Level
DD67231 60″ Wide 24″ Deep 96″ High 4 2,600 lbs Per Level
DD67213 60″ Wide 36″ Deep 72″ High 3 2,600 lbs Per Level
DD67223 60″ Wide 36″ Deep 84″ High 3 2,600 lbs Per Level
DD67233 60″ Wide 36″ Deep 96″ High 4 2,600 lbs Per Level
DD67215 60″ Wide 48″ Deep 72″ High 3 2,600 lbs Per Level
DD67225 60″ Wide 48″ Deep 84″ High 3 2,600 lbs Per Level
DD67235 60″ Wide 48″ Deep 96″ High 4 2,600 lbs Per Level
DD67311 72″ Wide 24″ Deep 72″ High 3 1,900 lbs Per Level
DD67321 72″ Wide 24″ Deep 84″ High 3 1,900 lbs Per Level
DD67331 72″ Wide 24″ Deep 96″ High 4 1,900 lbs Per Level
DD67313 72″ Wide 36″ Deep 72″ High 3 1,900 lbs Per Level
DD67323 72″ Wide 36″ Deep 84″ High 3 1,900 lbs Per Level
DD67333 72″ Wide 36″ Deep 96″ High 4 1,900 lbs Per Level
DD67315 72″ Wide 48″ Deep 72″ High 3 1,900 lbs Per Level
DD67325 72″ Wide 48″ Deep 84″ High 3 1,900 lbs Per Level
DD67335 72″ Wide 48″ Deep 96″ High 4 1,900 lbs Per Level
DD67411 84″ Wide 24″ Deep 72″ High 3 1,775 lbs Per Level
DD67421 84″ Wide 24″ Deep 84″ High 3 1,775 lbs Per Level
DD67431 84″ Wide 24″ Deep 96″ High 4 1,775 lbs Per Level
DD67413 84″ Wide 36″ Deep 72″ High 3 1,775 lbs Per Level
DD67423 84″ Wide 36″ Deep 84″ High 3 1,775 lbs Per Level
DD67433 84″ Wide 36″ Deep 96″ High 4 1,775 lbs Per Level
DD67415 84″ Wide 48″ Deep 72″ High 3 1,775 lbs Per Level
DD67425 84″ Wide 48″ Deep 84″ High 3 1,775 lbs Per Level
DD67435 84″ Wide 48″ Deep 96″ High 4 1,775 lbs Per Level
DD67511 96″ Wide 24″ Deep 72″ High 3 1,650 lbs Per Level
DD67521 96″ Wide 24″ Deep 84″ High 3 1,650 lbs Per Level
DD67531 96″ Wide 24″ Deep 96″ High 4 1,650 lbs Per Level
DD67513 96″ Wide 36″ Deep 72″ High 3 1,650 lbs Per Level
DD67523 96″ Wide 36″ Deep 84″ High 3 1,650 lbs Per Level
DD67533 96″ Wide 36″ Deep 96″ High 4 1,650 lbs Per Level
DD67515 96″ Wide 48″ Deep 72″ High 3 1,650 lbs Per Level
DD67525 96″ Wide 48″ Deep 84″ High 3 1,650 lbs Per Level
DD67535 96″ Wide 48″ Deep 96″ High 4 1,650 lbs Per Level
