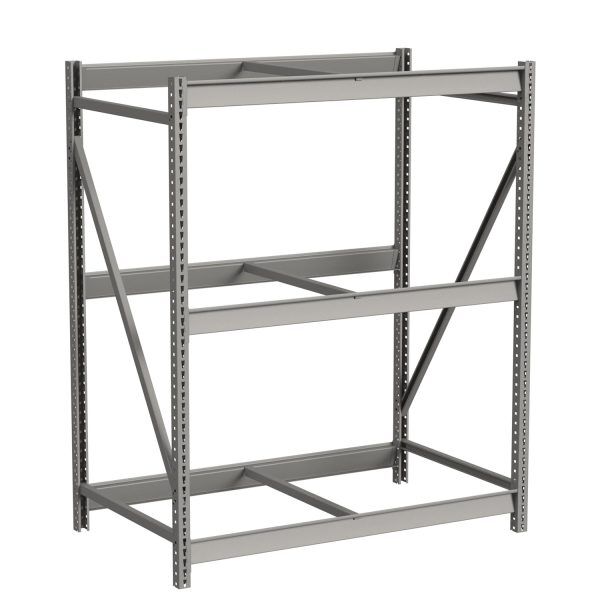

Bulk Storage Rack with Front-to-Back Supports Starter
- Ideal for bulky items, retail displays, medical supplies, and more.
- Welded 14-gauge steel uprights and heavy-duty beams with Z-beam design.
- Easy to adjust beam height for optimal storage.
- Front-to-back supports help prevent beam rotation and ensure stability.
- Unassembled for DIY setup, easy to install with or without additional sections.
- View More Details
$504.89 – $959.95 per Unit
Frequently bought together
-
-
-
-
Bulk Storage Rack Level with Front-to-Back Supports
$87.52 – $166.43 per UnitSKU: BSRL-FTB
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Bulk Storage Rack with Front-to-Back Supports Add-On
$386.12 – $697.05 per UnitSKU: BSR FBS Add-On
Select options This product has multiple variants. The options may be chosen on the product pageQuick View
- Product Details
- Product Specifications
- Reviews (0)
- Level Capacities
- Downloads
Description
Lyon’s bulk storage rack starter with front-to-back supports is ideal for the hand-loading of intermediate weight bulky items. You can use this heavy-duty rack shelf in any number of storage applications. In addition to storing merchandise in shipping and receiving departments, stores can use these industrial metal racks in retail locations for display as well as for back stock. Hospitals can also use this heavy-duty steel storage rack to hold medical supplies and much more. We offer these steel Storage Racks with a durable powder coat finish available in Dove Gray. The powder coat paint finish will help protect your bulk rack shelving from everyday use.
Welded Uprights
Our Bulk Storage Rack starter includes two fully welded uprights made of 14-gauge steel. Each upright comes fully assembled and ready to install. These storage rack Uprights feature tubular bracing that is MIG welded to the post for added stability. The slots of the uprights provide a quick and easy vertical adjustment of beams to create optimal storage solutions. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post. One pair of bulk storage rack uprights can hold up to 10,000 lbs.
Heavy-Duty Beams
Lyon makes the heavy-duty beams of 14-gauge steel. Our unique “Z” beam design increases the strength and load capacity of the the steel Beams while also resisting tipping and eliminating wasted space. The MIG welded beam clips give added strength. Each end of the beam has three studs to engage the heavy-duty metal rack upright slots. Easily adjust the beams on 1-1/2-inch vertical centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change. A fold in lock tab easily engages with the post to prevent accidental displacement. Create even more storage options by adding more Levels with Front-to-Back Supports to your adjustable metal storage racks.
Front-to-Back Supports
This bulk storage rack starter includes the proper amount of Front-to-Back Supports with each level. The supports install easily onto the heavy-duty metal rack without tools. The supports help minimize beam rotation when supporting heavy loads. This maintains both the rigidity and stability of your industrial rack shelving. These supports can also be used as supports to hold your own plywood decking.
Assembly and Installation
The bulk storage rack starter ships unassembled. These heavy-duty metal storage rack sections assemble easily without tools. Use this starter unit either alone or combine it with other 24-inch-deep heavy-duty storage racks Add-On Sections to create a long run of industrial steel storage racks. Lyon strongly recommends that all storage racks be properly anchored. Make sure to install your heavy-duty metal storage racks plumb and level before anchoring them to the floor and/or wall. Use the Bulk Storage Rack Anchoring Foot and Wedge Anchors to anchor your uprights to the floor.
View more Pre-Designed Bulk Storage Rack Units from Lyon
Starter Or Add On | Starter |
---|
Only logged in customers who have purchased this product may leave a review.
SKU | Width | Depth | Height | Levels | Capacity Per Level |
---|---|---|---|---|---|
DD67211S | 60″ Wide | 24″ Deep | 72″ High | 3 | 2,600 lbs Per Level |
DD67221S | 60″ Wide | 24″ Deep | 84″ High | 3 | 2,600 lbs Per Level |
DD67231S | 60″ Wide | 24″ Deep | 96″ High | 4 | 2,600 lbs Per Level |
DD67213S | 60″ Wide | 36″ Deep | 72″ High | 3 | 2,600 lbs Per Level |
DD67223S | 60″ Wide | 36″ Deep | 84″ High | 3 | 2,600 lbs Per Level |
DD67233S | 60″ Wide | 36″ Deep | 96″ High | 4 | 2,600 lbs Per Level |
DD67215S | 60″ Wide | 48″ Deep | 72″ High | 3 | 2,600 lbs Per Level |
DD67225S | 60″ Wide | 48″ Deep | 84″ High | 3 | 2,600 lbs Per Level |
DD67235S | 60″ Wide | 48″ Deep | 96″ High | 4 | 2,600 lbs Per Level |
DD67311S | 72″ Wide | 24″ Deep | 72″ High | 3 | 1,900 lbs Per Level |
DD67321S | 72″ Wide | 24″ Deep | 84″ High | 3 | 1,900 lbs Per Level |
DD67331S | 72″ Wide | 24″ Deep | 96″ High | 4 | 1,900 lbs Per Level |
DD67313S | 72″ Wide | 36″ Deep | 72″ High | 3 | 1,900 lbs Per Level |
DD67323S | 72″ Wide | 36″ Deep | 84″ High | 3 | 1,900 lbs Per Level |
DD67333S | 72″ Wide | 36″ Deep | 96″ High | 4 | 1,900 lbs Per Level |
DD67315S | 72″ Wide | 48″ Deep | 72″ High | 3 | 1,900 lbs Per Level |
DD67325S | 72″ Wide | 48″ Deep | 84″ High | 3 | 1,900 lbs Per Level |
DD67335S | 72″ Wide | 48″ Deep | 96″ High | 4 | 1,900 lbs Per Level |
DD67411S | 84″ Wide | 24″ Deep | 72″ High | 3 | 1,775 lbs Per Level |
DD67421S | 84″ Wide | 24″ Deep | 84″ High | 3 | 1,775 lbs Per Level |
DD67431S | 84″ Wide | 24″ Deep | 96″ High | 4 | 1,775 lbs Per Level |
DD67413S | 84″ Wide | 36″ Deep | 72″ High | 3 | 1,775 lbs Per Level |
DD67423S | 84″ Wide | 36″ Deep | 84″ High | 3 | 1,775 lbs Per Level |
DD67433S | 84″ Wide | 36″ Deep | 96″ High | 4 | 1,775 lbs Per Level |
DD67415S | 84″ Wide | 48″ Deep | 72″ High | 3 | 1,775 lbs Per Level |
DD67425S | 84″ Wide | 48″ Deep | 84″ High | 3 | 1,775 lbs Per Level |
DD67435S | 84″ Wide | 48″ Deep | 96″ High | 4 | 1,775 lbs Per Level |
DD67511S | 96″ Wide | 24″ Deep | 72″ High | 3 | 1,650 lbs Per Level |
DD67521S | 96″ Wide | 24″ Deep | 84″ High | 3 | 1,650 lbs Per Level |
DD67531S | 96″ Wide | 24″ Deep | 96″ High | 4 | 1,650 lbs Per Level |
DD67513S | 96″ Wide | 36″ Deep | 72″ High | 3 | 1,650 lbs Per Level |
DD67523S | 96″ Wide | 36″ Deep | 84″ High | 3 | 1,650 lbs Per Level |
DD67533S | 96″ Wide | 36″ Deep | 96″ High | 4 | 1,650 lbs Per Level |
DD67515S | 96″ Wide | 48″ Deep | 72″ High | 3 | 1,650 lbs Per Level |
DD67525S | 96″ Wide | 48″ Deep | 84″ High | 3 | 1,650 lbs Per Level |
DD67535S | 96″ Wide | 48″ Deep | 96″ High | 4 | 1,650 lbs Per Level |
